高定向热解石墨HOPG

  • 高定向热解石墨 HOPG-ZYA-1mm
  • 高定向热解石墨 HOPG-ZYA-1mm
高定向热解石墨 HOPG-ZYA-1mm高定向热解石墨 HOPG-ZYA-1mm

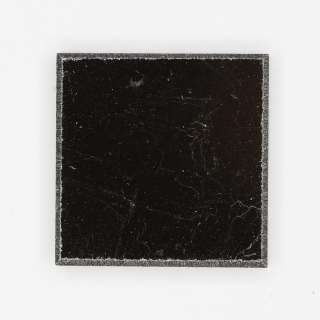

高定向热解石墨 HOPG-ZYA-1mm

高定向热解石墨 HOPG-ZYA-1mm
最高质量
晶体尺寸:横向~12mm,厚度1mm
电学性能:金属
晶体结构:六边形
晶胞参数:a = b =0.246, c = 0.667 nm, α = β = 90°, γ =120°
晶体类型:合成
晶体纯度:>99.995%
旋 转 角:0.4° +/- 0.1°


X-ray diffraction on a HOPG single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 3 XRD peaks correspond, from left to right, to (00l) with l = 1, 2, 3
